TRACK RUNNER BEARINGS

Inside:
2-30
Outside:
13-90
height:
23-100
weight:
0.016-2kg
type:
TRACK RUNNER BEARINGS
没有此类产品
MESSAGE
product description

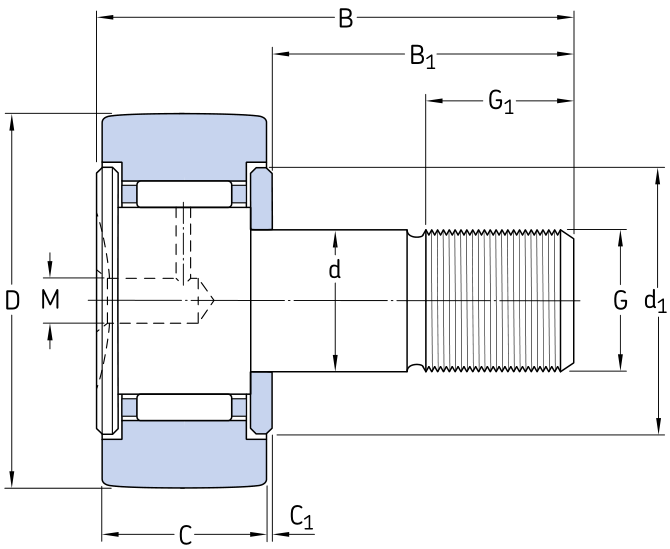

TRACK RUNNER BEARINGS

\

Bearing NO. Dimensions    (mm) Weight (kg)
D d d1 G G1 B1 M C C1
KR13 KRV13 13 5 10.4 M5 x 0.8    7 23 13 4 9 0.5 0.016
KR16 KRV16 16 6 12.5 M6 x 1      8 28.2 16 4 11 0.6 0.018
KR19 KRV19 19 8 15 M8 x 1.25  10 32.2 20 4 11 0.6 0.028
KR22 KRV22 22 10 17.5 M10 x 1.25  12 36.2 23 4 12 0.6 0.044
KR26 KRV25 26 10 17.5 M10 x 1.25  12 36.2 23 4 12 0.6 0.058
KR30 KRV30 30 12 23 M12 x 1.5   13 40.2 25 4 14 0.6 0.087
KR32 KRV32 32 12 23 M12 x 1.5 13 40.2 25 4 14 0.6 0.090
KR35 KRV35 35 16 27.6 M16 x 1.5 17 52.1 32.5 6 18 0.8 0.169
KR40 KRV40 40 18 31.5 M18 x 1.5 19 58.2 36.5 6 20 0.8 0.247
KR47 KRV47 47 20 36.5 M20 x 1.5 21 66.1 40.5 6 24 0.8 0.386
KR52 KRV52 52 20 36.5 M20 x 1.5 21 66.1 40.5 6 24 0.8 0.461
KR62 KRV62 62 24 38 M24 x 1.5 25 80.1 49.5 8 29 0.8 0.790
KR72 KRV72 72 24 44 M24 x 1.5 25 80.1 49.5 8 29 0.8 1.040
KR80 KRV80 80 30 53 M30 x 1.5 32 100 63 8 35 1 1.550
KR85 KRV85 85 30 53 M30 x 1.5 32 100 63 8 35 1 1.740
KR90 KRV90 90 30 53 M30 x 1.5 32 100 63 8 35 1 1.950
